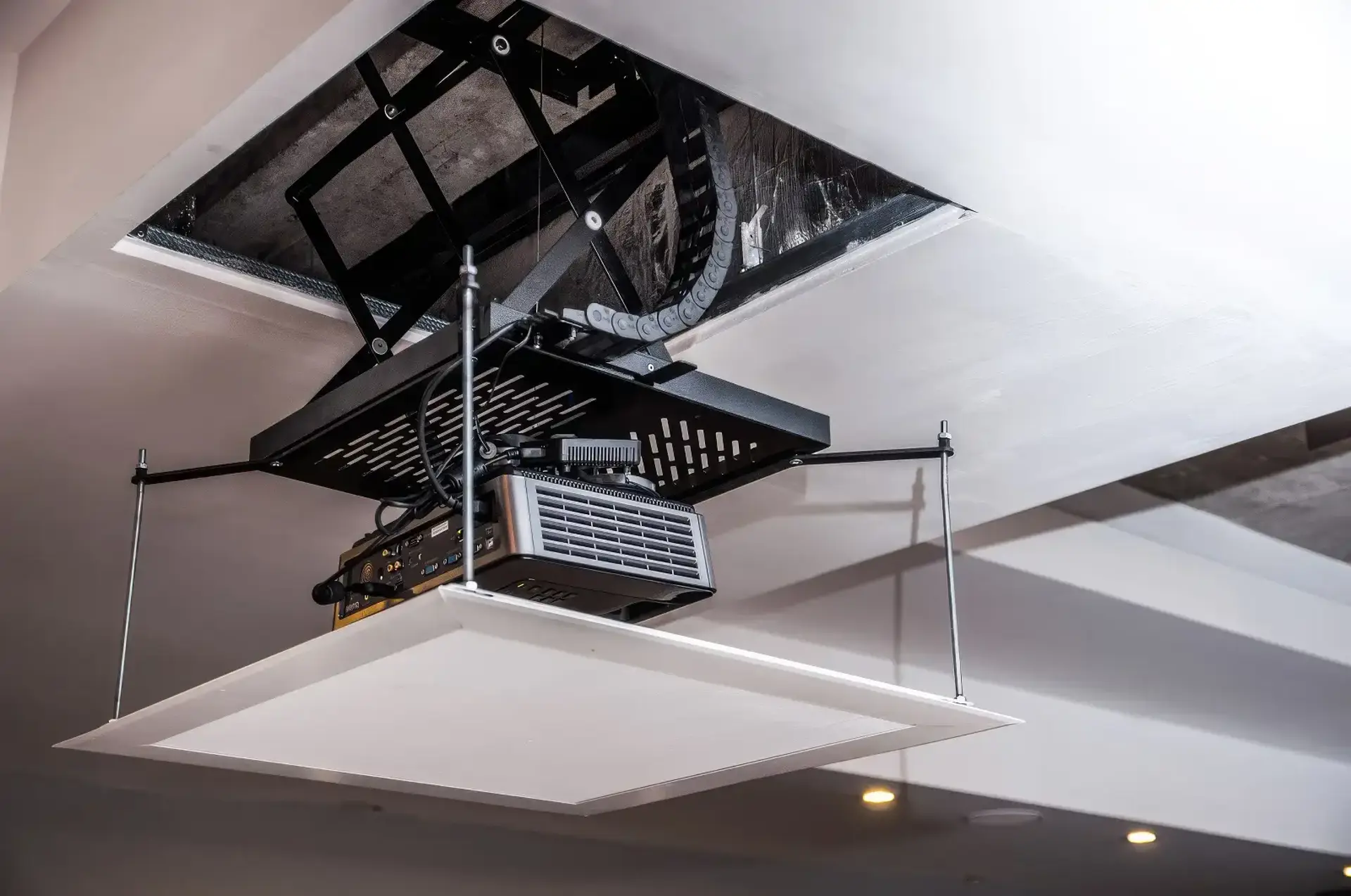

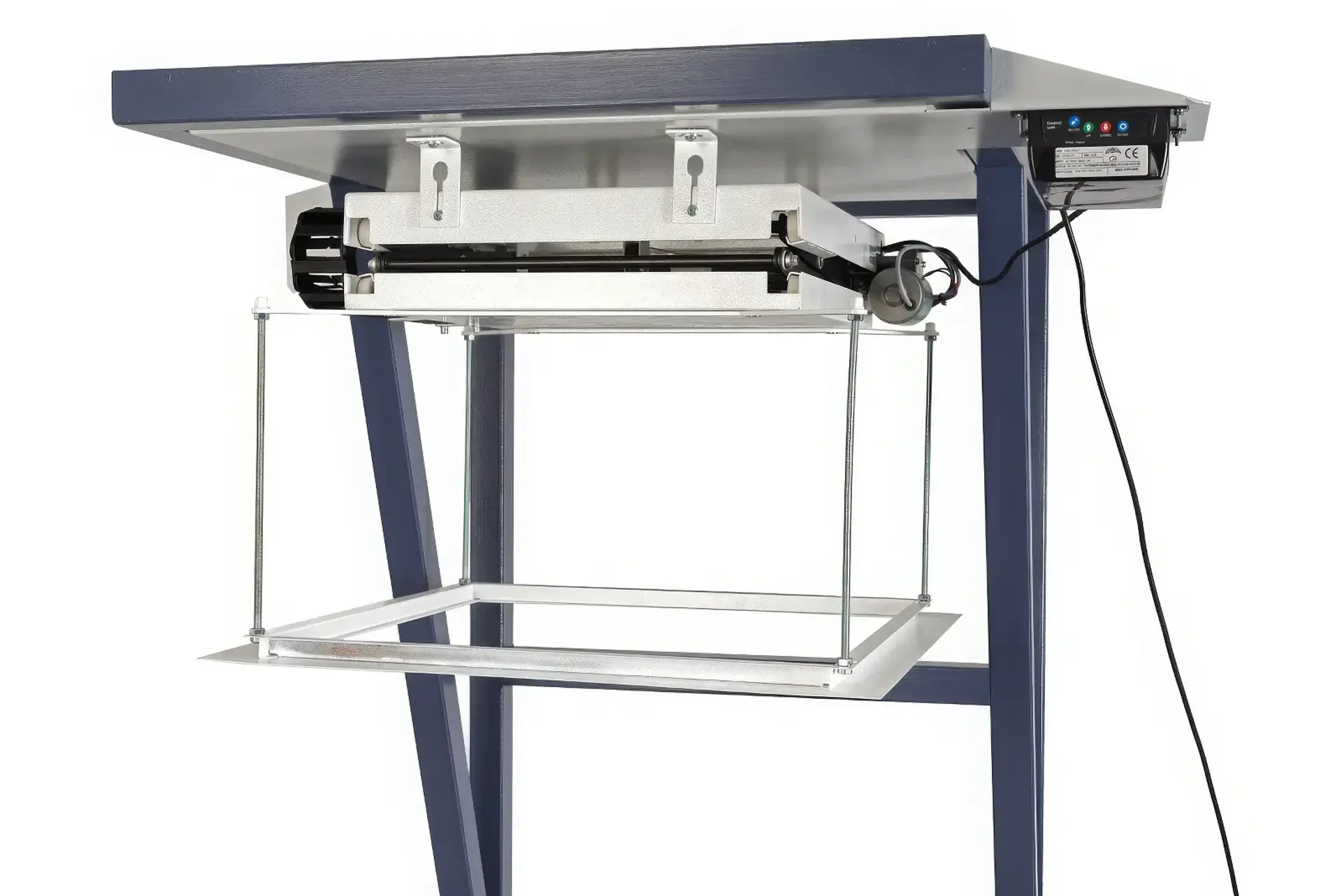

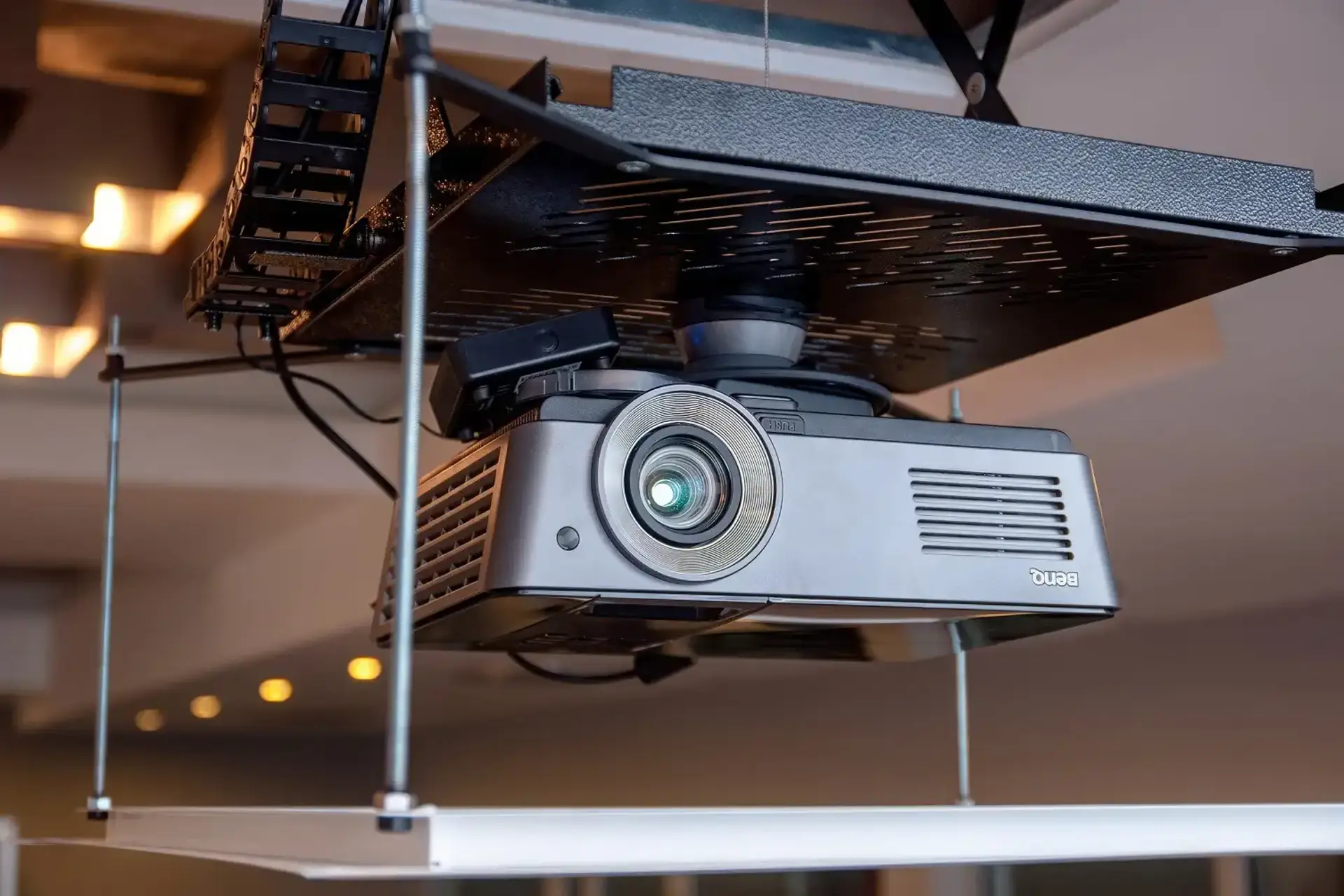

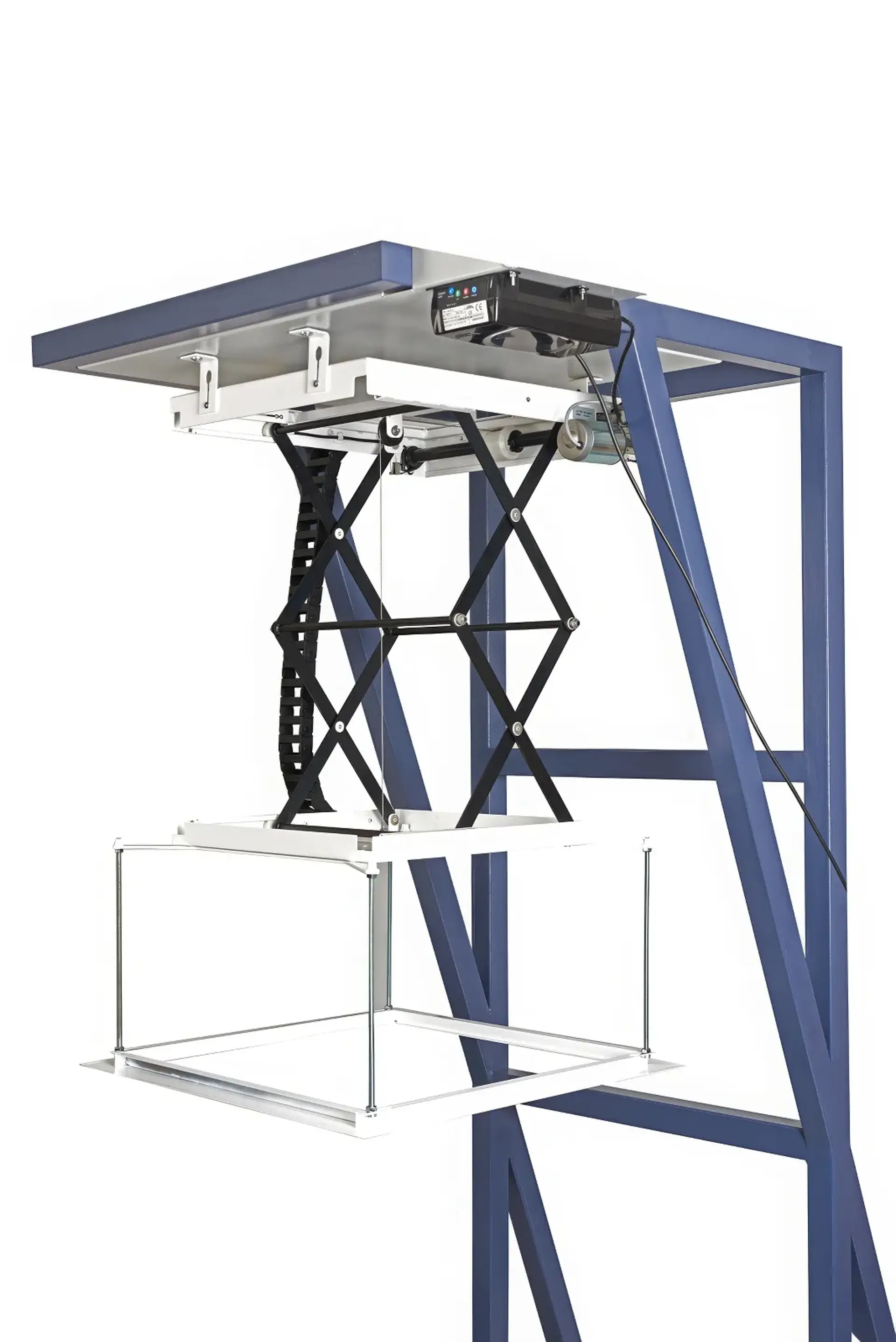

A motorised mechanism that can lower a projector mounted to a test rig A motorised mechanism that can lower a projector mounted to a test rig A projector mounted to a motorised mechanism lowered from the ceiling A projector mounted to a motorised mechanism lowered from the ceiling
  • Thumbnail of A motorised mechanism that can lower a projector mounted to a test rig
  • Thumbnail of A motorised mechanism that can lower a projector mounted to a test rig
  • Thumbnail of A projector mounted to a motorised mechanism lowered from the ceiling
  • Thumbnail of A projector mounted to a motorised mechanism lowered from the ceiling

WP-560 Ceiling Projector Lift

Manufacturer: Sabaj Group

Code: SAB-WP560-PROJ

This universal projector lift mechanism has a high weight capacity of 20kg with a long programmable stroke length of up to 560mm.

Soft stop and start, helps maintain projector bulb lifespan and reduces wear and tear on the mechanism overall.

Quantity

£635.02 ex VAT

In stock

Specifications

Product
Dimensions
W:450mm H:105mm D:530mm
Screen Mount
Type
Ceiling Mounted
Motorised Lift
Stroke Length
560mm
Ceiling Mountable
Yes
Lift Capacity (ceiling mounted)
20kg
Control Options
RF Remote
Safety Features
Overload Protection

Key Features

  • 560mm programmable stroke length
  • 20kg lifting capacity
  • Mechanical safety strap
  • 5-year warranty
  • Cable management included
  • Active RJ45 port for accessories

Package Includes

  • Cover Frame
  • Ceiling Brackets
  • Cable Chain and Brackets
  • Threaded Rods
  • Sabaj Premium Control Box
  • RF Remote

Additional Information

Designed to fit in most popular standard suspended ceiling (60×60 cm) and can carry projectors larger than its own footprint.  Requiring only 105mm + projector of space, this slim celling projector lift is the premium offering from Sabaj Group.

The included control box supports programmatic control of both top and bottom stopping positions and supports accessories through the active RJ45 port.

The RF signal from the remote can easily travel through plywood and plasterboard construction, eliminating the wiring of any external antennas or receivers.

The provided cable management chain keeps everything tidy, protecting power and video cables from trapping or damage.

Related Products

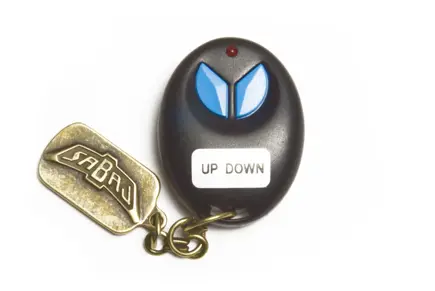

Sabaj 2 Way RF Remote Control (Eco & Premium Range)
