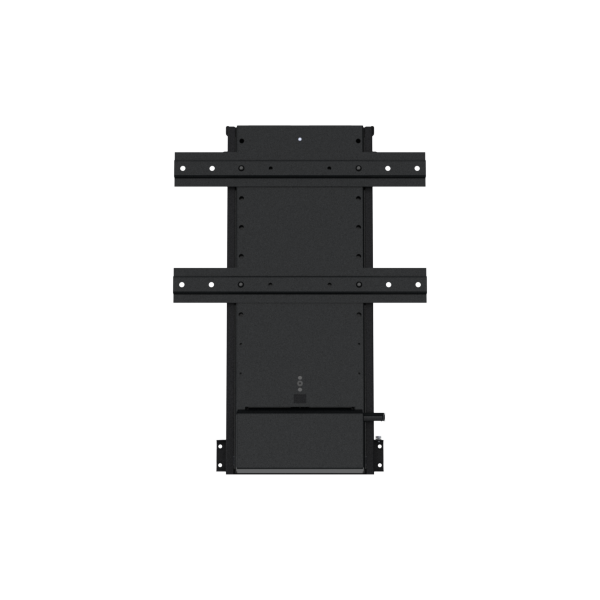

TS700C - 700mm Stroke TV Lift - Screens up to 50"

Manufacturer: Venset

Code: TS700C

The TS700C from Venset is designed for small to large LCD/plasma screens.

The TS700C from Venset is a Plug & Play powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze function in both directions.

The lift has an incredible stroke compared to the required build-in height, which makes this unit usable for installation almost everywhere. The stroke can also be adjusted to limit the stroke height and/or the stroke drop.





Quantity

£359.00 ex VAT

In stock

Specifications

Product

Colour

Black

Dimensions

W:286mm H:600mm D:72mm

Screen Mount

Type

Build-In

Min TV Size

27"

Max TV Size

50"

Max TV Weight

65kg

Vesa Compatibility

100x100, 200x100, 200x200, 300x300, 400x100, 400x200, 400x300, 400x400

Motorised Lift

Stroke Length

700mm

Control Options

RF Remote, Physical Switch

Safety Features

Anti-trap

Key Features

  • Controlled with rocker switch or remote control
  • Peak load of 100 kg and working load of 65 kg (see specifications).
  • Working load of 29kg if mounted upside down
  • Anti-squeeze: The pressure  given before reverting is equal to the weight of the cabinet mounted.
  • Fits the following VESA standards: 400x400 and 400x300 and 400x200 and 400x100 and 300x300 and 200x200 and 200x100 and 100x100

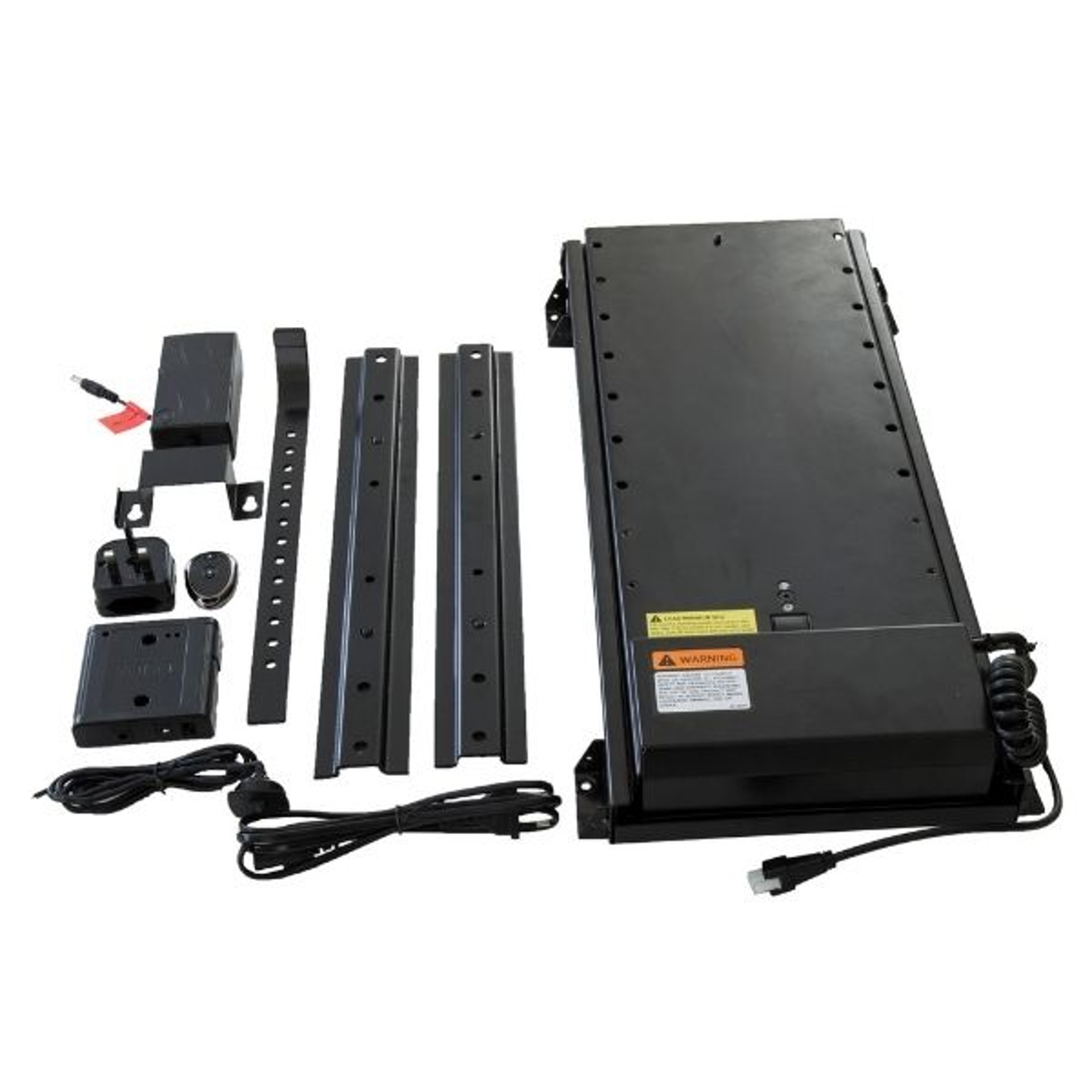

Package Includes

  • TS700c TV Lift with Multi VESA bracket
  • Control Module

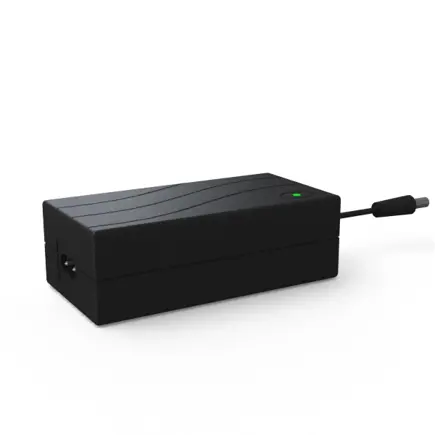

  • UK Power Supply

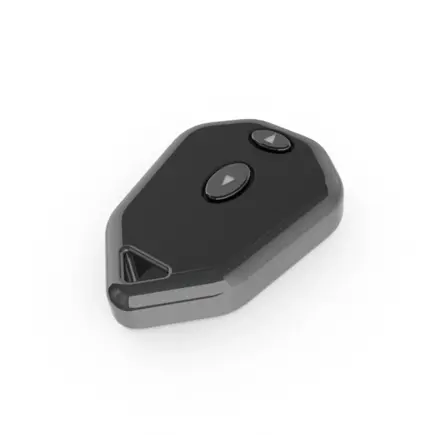

  • RF Remote Control

Additional Information

How many remotes can I pair up to a TS700C?

Up to 10 remotes can be paired to these TV lifts at the same time.

Manufacturer Advice Regarding Hinged Lids On Cabinets?

These are powerful lifts and sudden impact / crash effect on the motor can cause damage. The cabinet design is the domain of the cabinet maker but for a general rule any hinged lid should be designed so that at the point of contact by the lid lifter bracket the cabinet lid can be easily pushed open with the tip of one finger.
