TS1000C-TWIN - 1000mm Stroke TV Lift - Screens up to 75"

Manufacturer: Venset

Code: TS1000C-TWIN

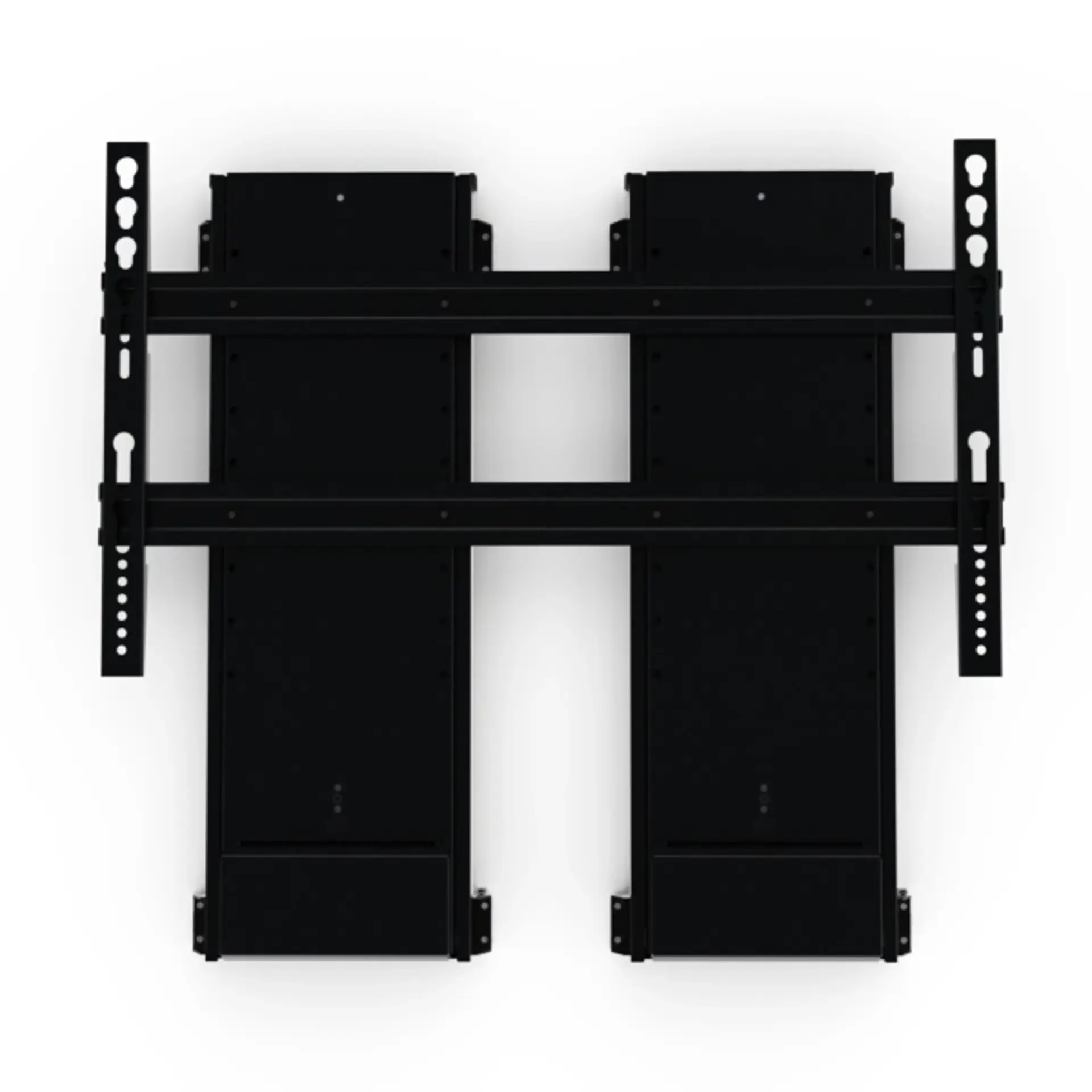

A pair of synchronised TS1000c units with a special bracket set designed to lift larger TV's with increased stability.

With a stroke of 1000mm the TS1000C-Twin from Venset  is a synchronised, dual actuator lift which handles very large and very heavy LCDs/plasmas. Despite the big stroke, the unit only requires a build-in height of 750 mm.

Quantity

£1,348.00 ex VAT

In stock

Specifications

Product

Dimensions

W:1086mm H:757mm

Screen Mount

Type

Build-In

Min TV Size

42"

Max TV Size

75"

Max TV Weight

65kg

Vesa Compatibility

200x100, 200x200

Motorised Lift

Stroke Length

1000mm

Lift Capacity

65kg

Ceiling Mountable

Yes

Lift Capacity (ceiling mounted)

29kg

Safety Features

Anti-trap, Auto-reverse

Key Features

  • Anti-squeeze safety protection. If the moving parts of the lift or the LCD/plasma mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse. The pressure given before reversing is equal to the weight of the TV that is mounted.
  • Remote controlled with RF.
  • Lift Capacity of 100 kg (50 kg if mounted upside down).
  • Stability, used when extra stability is needed.
  • Heavy or large screen are no problem.
  • Fits the following VESA standards: 600x400, 600x200, 600x100, 400x400, 400x200, 400x100, 300x300, 200x200, 200x100

Package Includes

  • 2 x TS1000c TV Lift with Multi VESA bracket
  • Additional coupling bracket
  • Synchroniser & Control Module
  • UK Power Supply
  • RF Remote Control

Additional Information

Manufacturer Advice Regarding Hinged Lids On Cabinets?

These are powerful lifts and sudden impact / crash effect on the motor can cause damage. The cabinet design is the domain of the cabinet maker but for a general rule any hinged lid should be designed so that at the point of contact by the lid lifter bracket the cabinet lid can be easily pushed open with the tip of one finger.
