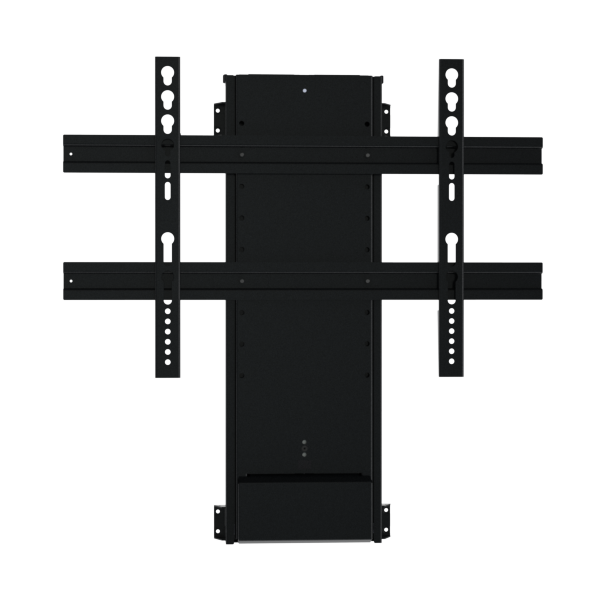

The Venset TS1000C is a smooth, compact TV lift for 75" screens with a strong 65 kg lifting capacity, and it can also be mounted upside down for drop‑down setups up to 29 kg. Ideal for cabinets and discreet AV installations.
Compared to the TS1000A, the TS1000C is quieter, adds electrical as well as mechanical stroke limiters, and includes a two‑way anti‑trap system for safer travel both up and down.
These are powerful lifts and sudden impact / crash effect on the motor can cause damage. The cabinet design is the domain of the cabinet maker but for a general rule any hinged lid should be designed so that at the point of contact by the lid lifter bracket the cabinet lid can be easily pushed open with the tip of one finger.
Two-way anti-trap safety protection. If the moving parts of the lift or the LCD/plasma mounted on the lift meet an obstacle, the lift will stop and reverse.
Remote controlled with RF.
Peak load of 100 kg and working load of 65/29 kg (see specifications).
Fits the following VESA standards: 600x400, 600x200, 600x100, 400x400, 400x200, 400x100, 300x300, 200x200, 200x100
