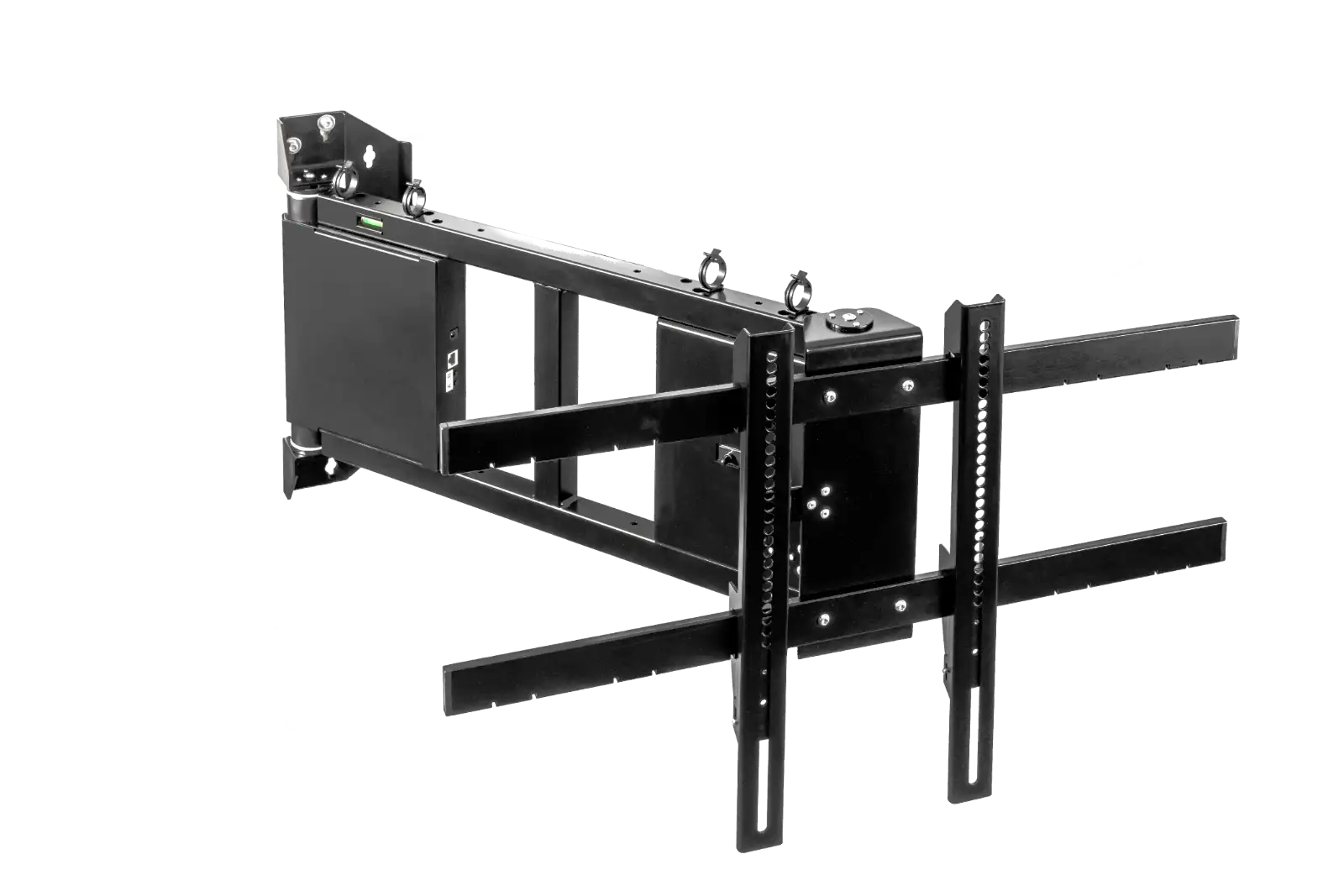

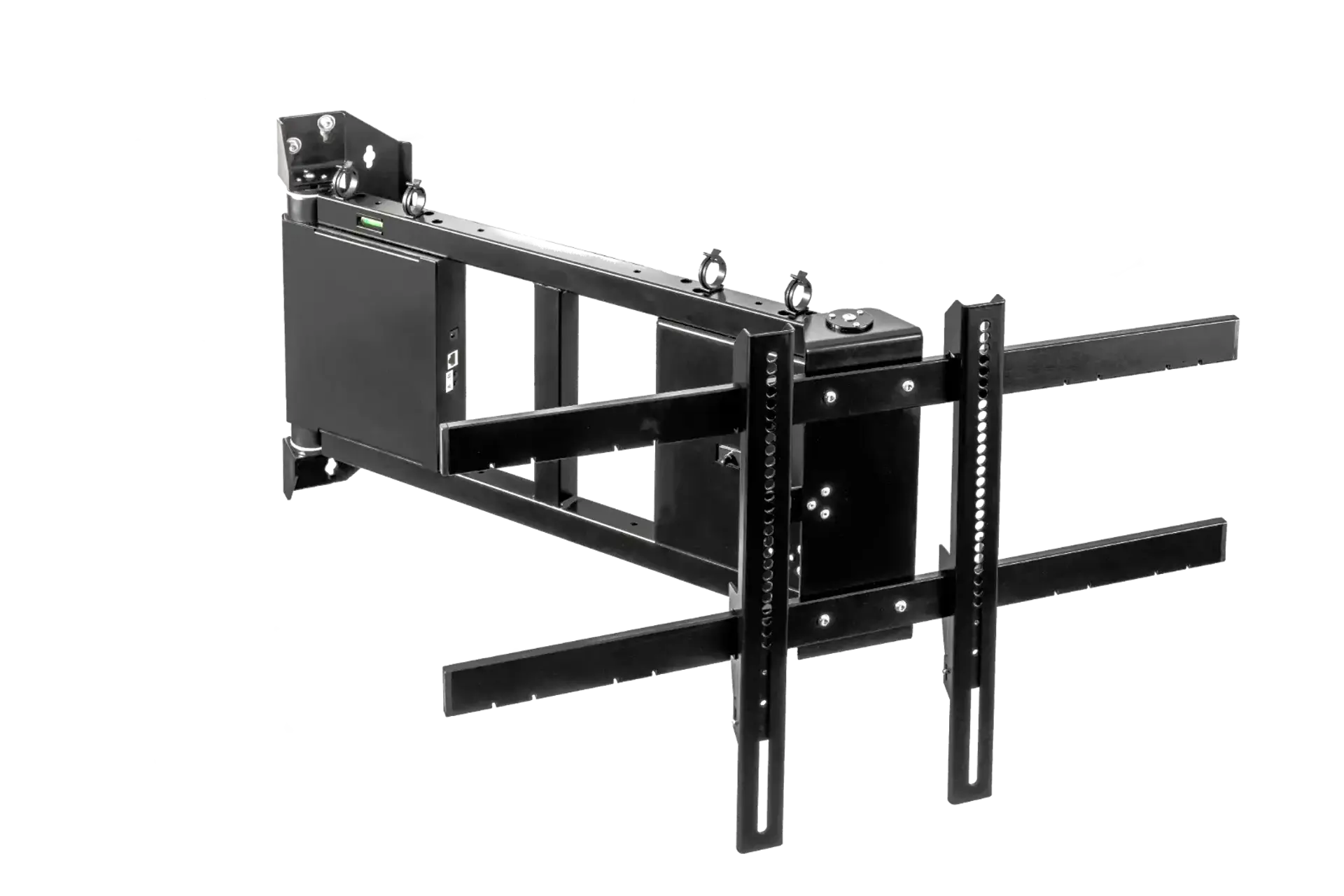

90° Swing Mount with 130° swivel - up to 75" 35kg TVs

Manufacturer: Sabaj Group

Code: SAB-OTW

Motorised TV wall-mounted bracket with electric rotation 130° and IR remote control.

This swing mount is a great option for kitchen family rooms where you can adjust the viewing angle depending on where you are in the room, if you are preparing food in the kitchen area or sitting down in the living area

It is also an excellent choice in rooms where your seating position is not ideal for viewing your TV. it will allow you to position your furniture how you want to in your room and allow you to change the viewing angle of your TV when seated, while still being able to retract your TV back to the wall for neatness when you don’t need it.

It also has a manual tilt adjustment to help achieve your perfect viewing position.

It utilises a unique self-learning system which allows you to operate and reveal your TV with your own TV remote control via the IR eyelet supplied with the lift.


Quantity

£247.00 ex VAT

In stock

Ask our experts about this product

Specifications

Product
Colour
Black
Dimensions
W:980mm H:490mm
Screen Mount
Type
Wall Mounted
Min TV Size
40"
Max TV Size
75"
Max TV Weight
35kg
Vesa Compatibility
100x100 200x100 200x200 200x300 200x400 300x100 300x200 300x300 400x100 400x200 400x300 400x400 600x100 600x200 600x400
Motion Mechanism
Control Options
infrared
Safety Features
Overload Protection Collision Detection

Key Features

  • Max. distance from the wall: 600 mm
  • Max. TV weight: 35 kg
  • Compatibility VESA: 100×100 to 600×400
  • For screens: 40-75″
  • Rotation angle: screen: ±130° | from the wall: 90°
  • Equipped with infrared (IR), compatible with 99% of IR remotes available on the market
  • Set includes Sabaj lift remote control

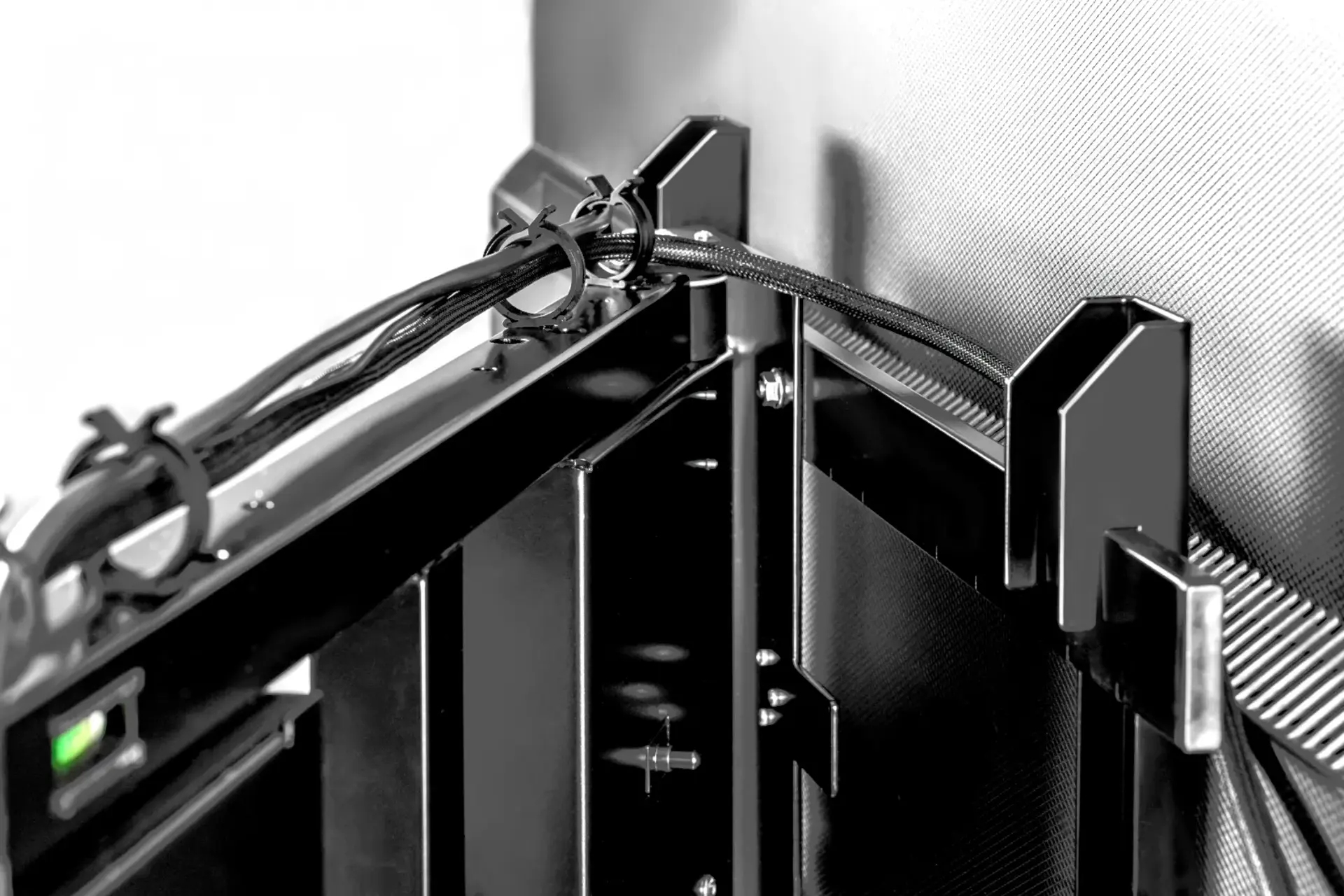

  • Features cable clamps for easy management of viewing area
  • Tested 10,000 cycles
  • Compatible with: Crestron, Crestron Home, Control4, and other home automation systems via K-PLC accessories
  • Possible control of the mount via mobile app (Android, iOS) wBox, compatible with Amazon Alexa and Google Home, using K-SMRT Accessory

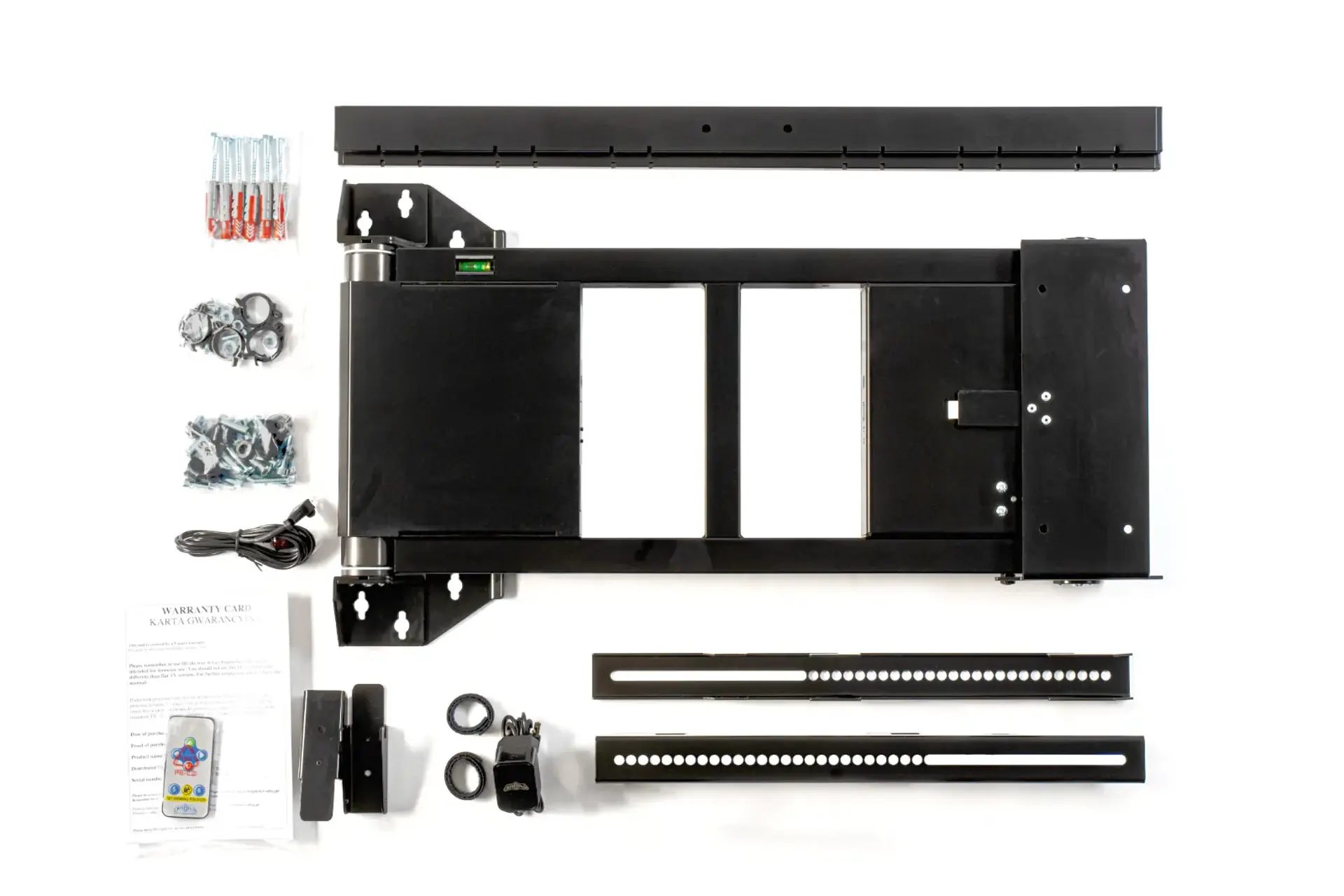

Package Includes

  • Sabaj Remote Control
  • Cable Management

Additional Information

Control with your existing TV Remote

Thanks to the IR receiver and IR Multicode system, the device can receive signals from most popular infrared remotes, such as TV remotes, ensuring versatility and ease of use.  This makes controlling the TV simple and convenient, regardless of the remote used.

Dual Rotation

With dual rotation - 90° from the wall and additionally ±130°on its own axis - you can achieve the perfect viewing angle. The entire range is fully controllable and adjustable to your needs thanks to the intelligent favourite position programming system.
